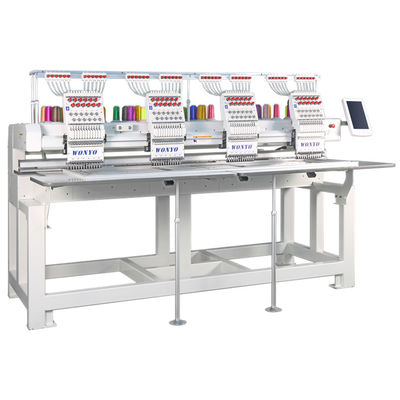

High Precision Computer Barudan Embroidery Machine / 4 Heads Embroidery Machine

Large Image : High Precision Computer Barudan Embroidery Machine / 4 Heads Embroidery Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WONYO

Contact Now

Detailed Product Description

Maximum Speed:	1200 RPM	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Condition:	New	Type:	Cap Embroidery Machine
Operation:	Computerized	Overall Dimensions:	263314801682mm
Warranty:	2 Years	Key Selling Points:	Easy To Operate
Power(w):	1KW	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Control System	Worktable Size:	2630*1480
Head Interval:	400	Embroidery Area:	400*450mm
Weight (kg):	720 KG	Head:	4 Haeds
Needles/ Colors:	15 Needles	Function:	Cap, Tshirt And Flat Embroidery
Rotary Hook:	Japan Made Koban Brand	Max Working Speed:	1200spm
Display:	12" With 16 Kinds Of Languages	Bobbin Case:	Japan Made Towa Brand
Needles:	Germany Made Groz-Beckert Brand	Delivery Time:	15-20 Working Days
Embroidery Size:	400*450mm

Product Description

High Precision Computer Barudan Embroidery Machine / 4 Heads Embroidery Machine

Product Description
Brand	WONYO
HS Code	8447902000
Original	Shenzhen, China
Head	4
Colors	9/12/15
Model	WY908CH/ WY1208CH/ WY1508CH
Max EMB	400*450mm per head
Computer	Topwisdom latest new model 10" display
Software	Recommend Isew/Wilcom/Tajima , any software that can make DST format is ok.
Speed	1200SPM
Applications	Cap;garment;flat;towel;etc
Main motor	Servo
XY motor	Stepper Motor
Power	1000W
Plug	Will provide the same one as customer advised
Voltage	All support; 50/60Hz; 110-250V

Main Feature

A.Suitable for flat embroidery, cap embroidery , finished garments embroidery and chain stitch embroidery
B. Free changing between finished garments frame ang cap frame
C.Pattern auto rotation with 180°after changing cap frame unit
D.270° wide cap frame unit
E. Maximum speed 1200 RPM
F. Color LCD display showing real time stitching
G. USB input port with fast data transmission and good compatibility
H. Auto star and color change,200 times color change seted
I. Thread break detection
J. Pre-sew design trace capable
K. Memory size 2, 000, 000 stitches
L. Emergency stop ,Prevent accidents
M. Electricity: AC86-264V input available
N. Built-in bobbin winder
O. Keeping current data or work when emergency stop or power off
P. Mending function. (back and skip stitches under controller)
Q. Switch of Cap/ flat embroidery mode eliminating hitting the frame.
R. Mainboard intergated into control panel protecting from dust or external force.
S. Lay-out of keys on panel is user-friendly.
T. Built-in Network

Tags: computer embroidery machine, software wilcom for embroidery, wilcom embroidery software

12" Touch Screen

A. Color LCD display showing real time stitching
B. Manual, Semi-auto, Auto Color Change
C. Function keys including Menu, Speed up and slow
D. Multi languages available
E. Frame-moving keys, Manual Trimming
F. DOT ket to return to 100 degree
G. Start, Stop, and emergency Stop
H. Embroidery Status (Page Up/Page Down), USB Input,
I. Parameter Settings, Clear, ESC, Enter, etc.
J. Numeric keys for selection of needles

Frames Included

A. 2 sets of 9*9 cm T-shirt hoop per head Total: 16 sets
B. 2 sets of 12*12 cm T-shirt hoop per head Total: 16 sets
C. 2 sets of 15*15 cm T-shirt hoop per head Total: 16 sets
D. 2 sets of 19*19 cm T-shirt hoop per head Total: 16 sets
E. 2 sets of 29*29 cm T-shirt hoop per head Total: 16 sets
F. 1 piece of Flat Embroidery Frame: 450*3200mm

Caps Embroidery Device Included (Cap rings * 16, Hoop station * 1, Cap driver * 8)

Title goes here.

A. 1 set of stand and table

B. 1 set x Bobbin winder

C. 1 set x Operation manual

D. 1 box x Tool kits and spare parts

E. 1 set x U disk (hundreds pattern can inside if you need)

F. 1 pc x Potentiometer

G. 10 rolls x Embroidery Threads

H. 1 big roll embroidery bottom thread (1.5kg)

I. 10 pcs x Embroidery Needles

Packing & Delivery

Packing and Delivery
Mini order	1 set
Package	Wooden package & free-fumigation
Packing size	24501050120mm
Gross weight	720KG
Production time	15-20 working days or so
Trade term	EXW, FOB, CIF ,CFR , DDP, DAP are available on our side.
Payment term	30% for deposit, 70% after machine finished.
Payment methods	TT/ Western Union/Money Gram/Credit Card/Echecking
Guarantee term	Quality guarantee term is for 2 year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

Product Show

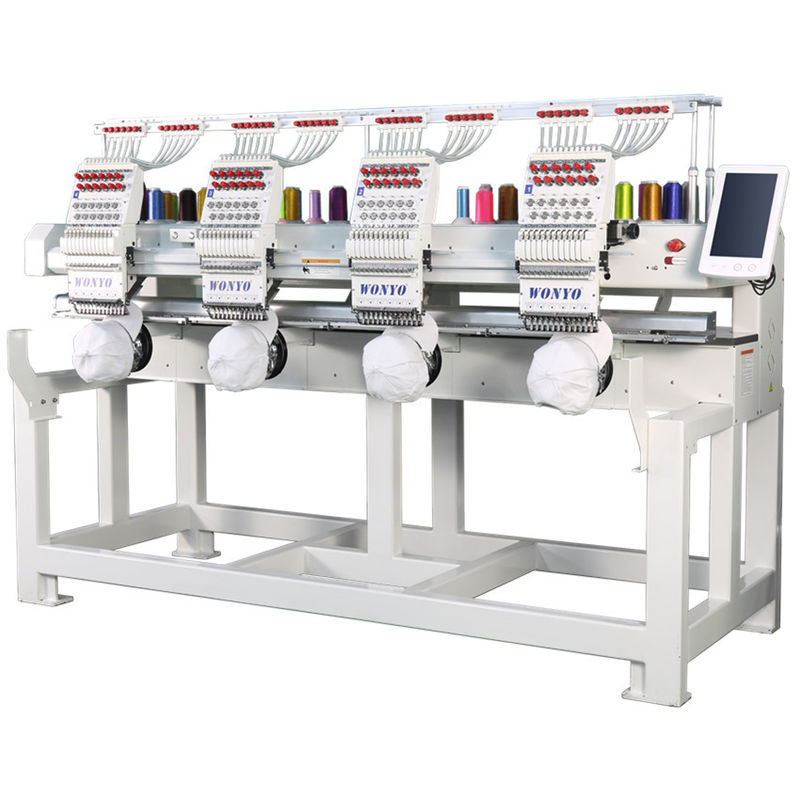

Cap Embroidery

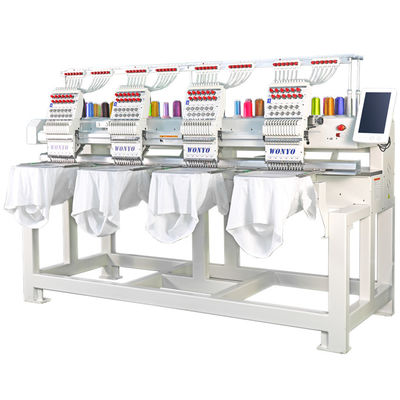

T-shirts Embroidery

Flat Embroidery

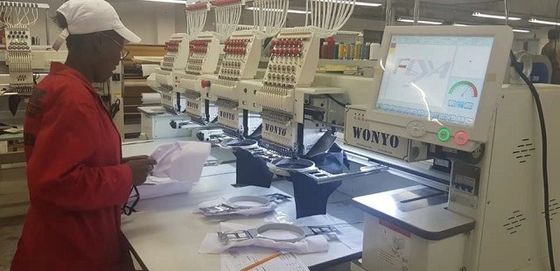

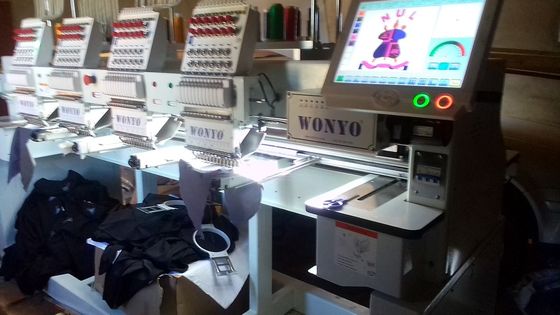

Factory Show

Shenzhen Wanyang technology Co., Ltd

Shenzhen Wanyang technology Co., Ltd is a highly advanced technology enterprise in which design, manufacture and marketing are integrated.We adheres to the value of integrity, innovation, surpass, teamwork, passion, appreciation and win-win policy.
We offer high - quality product and service beyond our customer's expectation. And we will do our best to be the international lead brand of special embroidery machines and equipments.
The main focus of our company is single head embroidery machine, cap embroidery machine, finished garments embroidery machine,shoes embroidery, multifunctional sewing and embroidery machine, customized service of intelligent and automatic sewing equipment.

Customers Feedback

Our Certificate

Our Advantages

1. Steady and high quality ! -cause we are a manufacturer of embroidery machine, and we only focus on one thing that is make professional embroidery machine for customer around the world.
2. Friendly use! all wonyo embroidery machines with teach manual and support live teaching via media.
3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .
4. 2 years warranty plus lifetime technical support.
5.All the parts use on machine, in stock forever.
6. Powerful technical support, NOT TRADE COMPANY! We are professional on embroidery machine, the chief engineer team have more than 20 years experience on embroidery machine area, so we can easy do diagnose on machine if customer have question.
7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .

WONYO original 8 head embroidery machine, if 9 needle is not meet your need, we have 12/15 needle machine available too.And also with different embroidery sizes.
